产品名称 : LED网格灯
产品型号 : CK-SMD2835-288-DC24V-XX-CRI90-240mm-IP20
质保 : 3
认证: cETLus CE
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-SMD2835-288-DC24V-XX-CRI90-240mm-IP20 |
|
Chip Quantity /pcs |
288chips/pcs |
|
Dimension |
480*240mm |
|
PCB |
480*240mm |
|
Working voltage |
DC 24V |
|
Wattage /M |
30W/pcs |
|
CCT Available |
3000K/4000K/6000K |
|
Light Efficiency |
>100lm/W |
|
CRI |
>90Ra |
|
Wire length |
150mm |
|
Beam angle |
120 ° |
|
Cutable Length |
20*20mm(1LED) |
|
Working temperature |
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
IP rank |
IP20 |

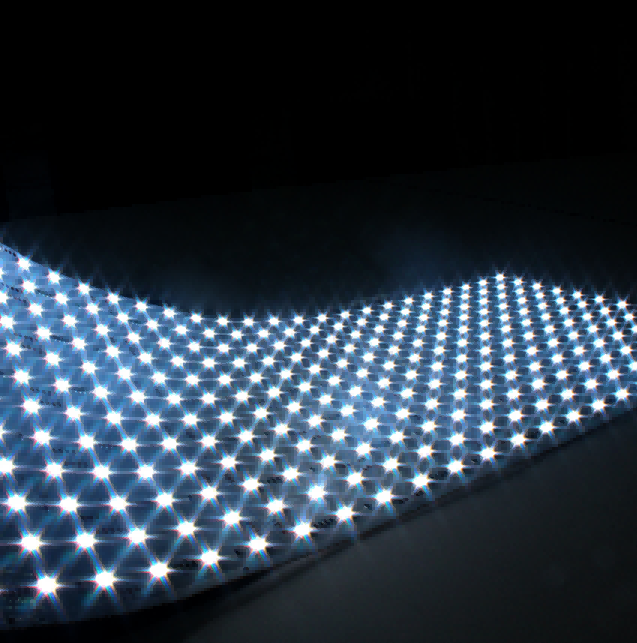

- With the continuous innovation and development, LED products have evolved from point light sources to linear light sources, and then to the current surface light sources. LED sheet light came into being, perfectly solving all the problems encountered by surface light sources, ideally suitable for advertisements, counter and bar tops, curved surfaces, low clearance, applications.
