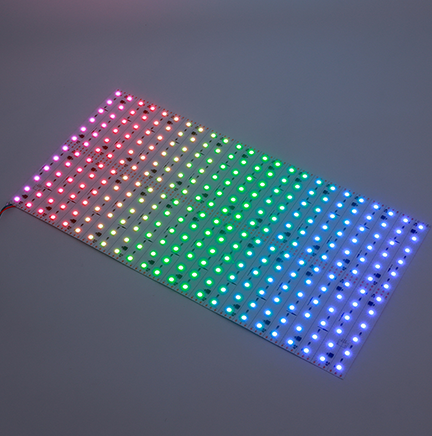

产品名称 : LED sheet light
产品型号 : CK-SMD5050-288-DC24V-RGBIC-240mm-IP20
质保 : 3
认证: cETLus CE
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-SMD5050-288-DC24V-RGBIC-240mm-IP20 |
|
Chip Quantity /pcs |
288chips/pcs |
|
Dimension |
480*240mm |
|
PCB |
480*240mm |
|
Working voltage |
DC 24V |
|
Wattage /M |
75W/pcs |
|
CCT Available |
RGB+IC |
|
Light Efficiency |
High brightness |
|
CRI |
N/A |
|
Wire length |
150mm |
|
Beam angle |
120 ° |
|
Cutable Length |
240*20mm(12LED) |
|
Working temperature |
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
IP rank |
IP20 |

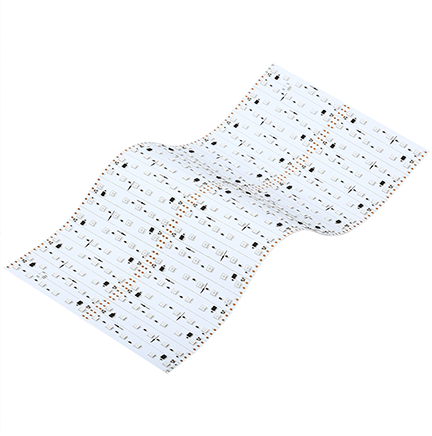

2. With high output 5050 led source, panel flex are specifically engineered to be dimmable, field customizable solution and around curvilinear shapes.

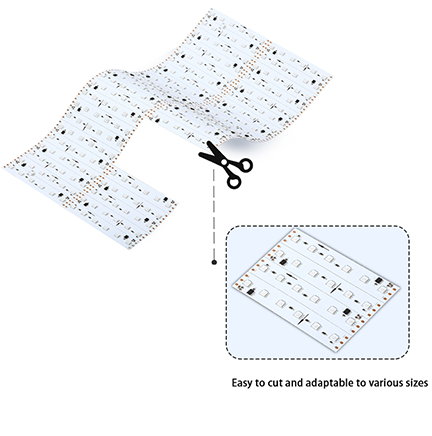

3. Easily and quickly without soldering. It allows non-site customization which can eliminate custom order lead times. When discrepancies between drawing specs and field measurements or when changes need to be made, on-site customization avoids delays.
