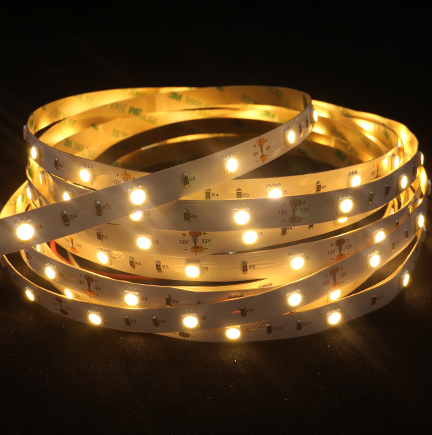

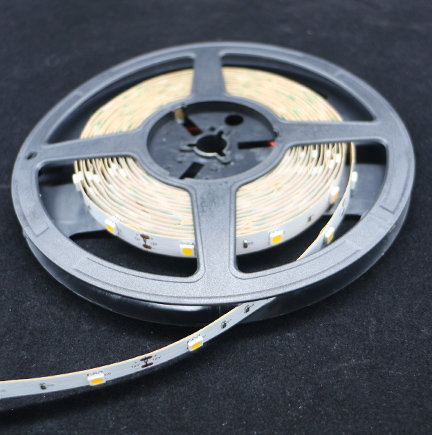

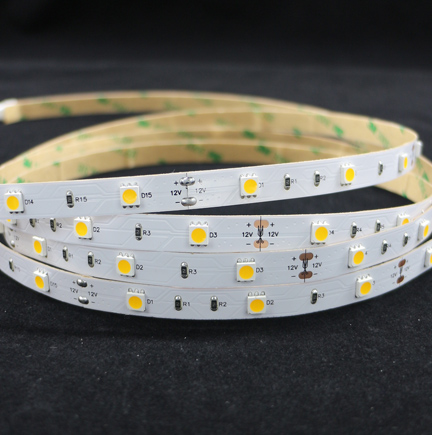

产品名称 : 30灯SMD5050软灯条
产品型号 : CK-S5N30V12
质保 : 3年
认证: ETL, CE, ROHS
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-S5N30V12 |
|
LED Type |
SMD5050 |
|
Lumen / LED |
20-22lm/LED |
|
LED Quantity /M |
30pcs |
|
Working voltage |
DC 12V/24V |
|
Wattage /M |
7.2W |
|
Standard Length |
5m |
|
Width |
10mm |
|
Wire length |
200mm |
|
Beam angle |
120 ° |
|
Color Available |
3000K/4000K/6000K/10000K/R/G/B |
|
Working temperature |
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
IP rank |
IP20/IP54/IP65/IP67 |
|
Warranty |
3 years |
-
Using high brightness SMD5050, 20-22lm per LED, Epistar chip.
-
Single Bin to be used to guarantee CCT consistency
-
Double layer 2OZ pcb, high efficiency
-
12V version 3 LEDs cuttable, 24V version 6 LEDs cuttable
-
OEM ODM available
-
50,000 hours durable lifespan
-
IP rank can be IP20, IP54, IP65, IP67
