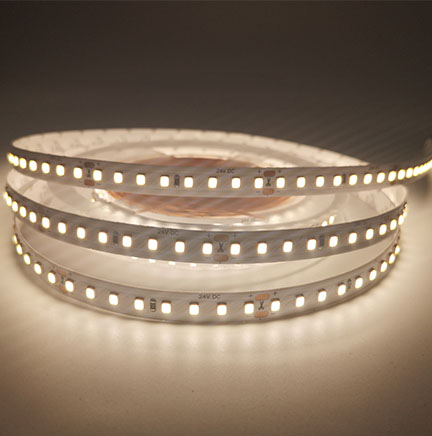

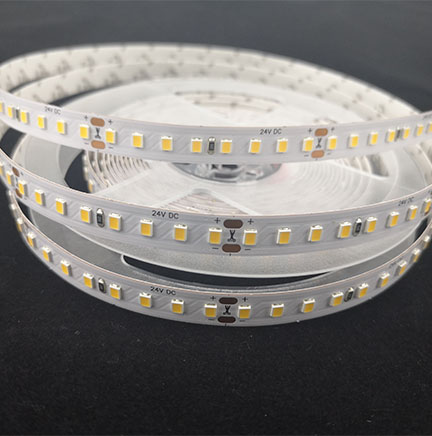

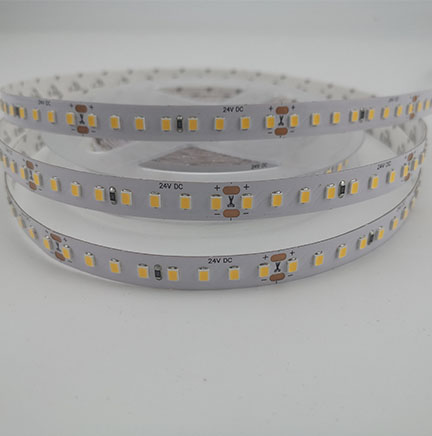

产品名称 : 128灯 高光效 170LM/W LED 灯带
产品型号 : CK-2835-128-DCXX-CRI90-10mm-IP20
质保 : 3年
认证: CE cETLus
- 产品参数
- 特征
- 数据下载
|
Part NO. |
CK-2835-64-DCXX-CRI90-10mm-IP20 |
|
CK-2835-128-DCXX-CRI90-10mm-IP20 |
|
LED Type |
SMD2835 |
|
SMD2835 |
|
LED brand |
Epistar |
|
Epistar |
|
Lumen / m |
2000lm/m |
|
4000lm/m |
|
LED Quantity /M |
64pcs |
|
128pcs |
|
Working voltage |
DC 12V/ 24V |
|
DC 12V/24V |
|
Wattage /M |
11.5W |
|
22W |
|
Standard Length |
5m/reel |
|
5m/reel |
|
PCB Width |
3OZ 10mm |
|
3OZ 10mm |
|
Wire length |
UL 18AWG 200mm |
|
UL 18AWG 200mm |
|
Beam angle |
120 ° |
|
120 ° |
|
Color temp |
WW/NW/PW/R/G/B/Y |
|
WW/NW/PW/R/G/B/Y |
|
Ra |
>90 |
|
>90 |
|
Working temperature |
-20~40 °C |
|
-20~40 °C |
|
Storage temperature |
-25~60 °C |
|
-25~60 °C |
|
Welding |
Lead-free |
|
Lead-free |
|
Certificate |
CE ETL |
|
CE ETL |
|
Lifespan |
3 years |
|
3 years |
|
CTN size |
450*340*270mm/K=K |
|
450*340*270mm/K=K |
-
3-Step MacAdam Ellipse SMD2835 LED, almost no color difference, perfect color effect.
-
Constant voltage DC 24V input.
-
3 OZ FPC, double layers
-
High light efficiency 170LM/W
-
CCT customized
-
Nice looking, top grade, easy installation.
Product features
