Product Name : 1LED 2835SMD Mini LED Injection Module with lens 160 degree
Part No : CK-SMD2835-1LED-DC12V-XX-2415-IP65
Warranty : 3 years
Certification: CE, RoHS
- Product parameters
- Features
- Data download
|
Input Voltage |
DC 12V |
Beam Angle |
160 ° |
|
Watts |
0.36W |
Lumen |
28~32lm per LED |
|
LED Type& Qty |
1pcs 2835SMD |
CCT |
3000K/4000K/6000K/8000K |
|
IP Rank |
IP65 |
Storage Temperature |
-20℃〜+ 45℃ |
|

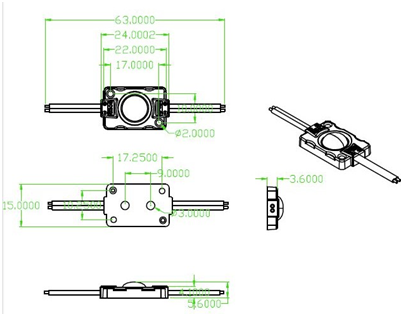

Dimension |
24*15*5.6mm |
Center Distance |
70mm |
|
String Qty |
20 PCS |
Cutting Unit |
Every Pieces |
|
Application |
Indoor and Outdoor |
Working Time |
30000H |
- Adopting mini size 2835SMD as light source, long lifetime, high brightness
- ABS Injection shell, fire-proofing
- Aluminum Heat Sink inside, low degradation and longevity
- Super mini dimension, be designed for small channel letters, wide viewing angle.
- No UV and No IR radiation
-
