Product Name : 3LEDs 5050SMD PVC Epoxy Resin RGB LED Module
Part No : CK-SMD5050-3LED-DC12V-RGB-7715-IP65
Warranty : 3 years
Certification: CE, RoHS
- Product parameters
- Features
- Data download
|
Input Voltage |
DC 12V |
Beam Angle |
120 ° |
|
Watts |
0.72W |
Lumen |
/ |
|
LED Type& Qty |
3pcs 5050SMD |
Color |
RGB 3 in 1 |
|
IP Rank |
IP65 |
Storage Temperature |
-20℃〜+ 45℃ |
|

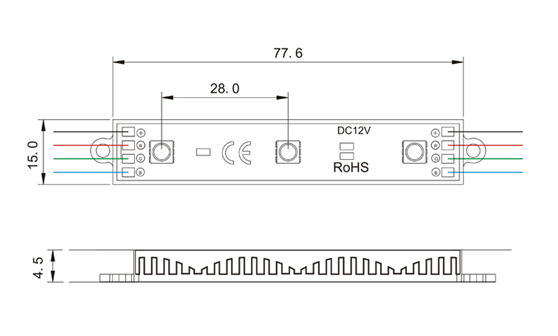

Dimension |
77.6*15*4.5mm |
Center Distance |
198mm |
|
String Qty |
20 PCS |
Cutting Unit |
Every Pieces |
|
Application |
Indoor and Outdoor |
Working Time |
30000H |
- Adopting 5050SMD as light source, 3 chips per LED, long lifetime, high brightness
- PVS shell with epoxy resin waterproof IP65, easy installation
- Low degradation and longevity
- Good heat dissipation, DC 12V input, more safety, waterproof IP65
- No UV and No IR radiation
- Wide viewing angle, nice looking
-
